Bitcoin PIPEs v2

[nemothenoone]

Bitcoin PIPEs v2: Covenants and ZKPs on the Bitcoin L1 via Witness Encryption.

PIPE v2 [2] explores a cryptographic alternative to Bitcoin covenants that operates entirely within existing consensus rules. Instead of extending Script or relying on optimistic dispute mechanisms, PIPE v2 enforces spending conditions by witness-gating access to a Bitcoin signing key. A valid Schnorr signature can be produced if and only if a specified NP statement is true. This yields a non-interactive mechanism deployable without a soft fork, in which Bitcoin funds become spendable if and only if a specified condition is satisfied, sufficient for vaults, exits, fraud proofs, and zk-proof gated releases, under well-defined cryptographic assumptions.

Bitcoin’s transaction validation model is intentionally minimal. At the consensus layer, Bitcoin verifies only that a transaction correctly spends unspent outputs and that each input is authorized by a valid digital signature. This simplicity is a defining strength: it keeps consensus rules stable, auditability high, and the security model well understood. At the same time, it places hard limits on the kinds of spending policies that can be enforced directly on-chain.

Several approaches try to address this limitation. Script extensions such as OP_CTV, OP_CAT, and OP_CSFS increase expressiveness but require a soft fork which is a change to Bitcoin’s consensus rules. Optimistic protocols such as BitVM avoid consensus changes, but introduce interactivity, challenge periods, and liveness assumptions. These tradeoffs are acceptable for some applications, but not all.

PIPE versions [1,2] explore a different point in the design space: enforcing spending conditions without new opcodes and without optimistic challenge mechanisms, by shifting enforcement entirely out of Bitcoin Script and into cryptography. Rather than asking Bitcoin to verify whether a transaction satisfies a condition, PIPE v2 makes it cryptographically impossible to produce a valid signature unless that condition holds.

This post presents PIPE v2 through the abstraction of witness signatures: conditional signature schemes in which producing a valid signature is equivalent to proving membership in a hard NP relation. We explain how PIPE v2 realizes witness signatures using witness encryption, characterize the resulting authorization semantics, and clarify its scope.

Core Idea: Enforcing Spending Rules Cryptographically

Let’s think what Bitcoin already provides.

• At the consensus layer, Bitcoin exposes a single authorization primitive: signature validity. A transaction input is accepted if it carries a valid Schnorr signature under the public key specified by the spent output. This is the only condition Bitcoin enforces for spending authorization.
• What Bitcoin deliberately does not encode is why a signature was produced. Bitcoin Script does not capture intent, context, or the computation that led to a signature.

This fully characterizes the available design space. Any spending rule that works without changing Bitcoin’s consensus rules must ultimately boil down to a single question:

Can a valid signature under this public key be produced or not?

There is no other hook available to enforce authorization.

The key insight behind PIPEs is to treat this constraint not as a limitation, but as the design surface.

If signature validity is the only thing Bitcoin enforces, then the strongest spending rule we can implement without a soft fork is one that controls whether a signature can be produced at all.

PIPE v2 do exactly this by moving enforcement before signing. Instead of asking Bitcoin Script to check a condition, PIPEs attach the condition to access to the signing key itself.

In a PIPE, the signing key corresponding to a Bitcoin address is not directly available. Instead, it is cryptographically locked behind a condition—such as the existence of a valid zero-knowledge proof, an exit proof, or a fraud proof. If the condition is satisfied, the key can be recovered and used to produce an ordinary Schnorr signature. If the condition is not satisfied, producing a valid signature is computationally infeasible.

From Bitcoin’s perspective, nothing changes. The transaction contains a standard signature under a standard public key and verifies as usual. From a protocol designer’s perspective, this extracts the maximum possible programmability from Bitcoin’s existing authorization model: arbitrary off-chain logic can gate spendability, without new opcodes, without interactivity, and without changing consensus.

Formalization: PIPE as a Witness Signature

To instantiate this idea, we introduce witness signatures and the corresponding PIPE construction (PIPE v2).

At a high level, a witness signature is just a normal Bitcoin signature but with a twist:

A valid signature can be produced if and only if a specific external condition is satisfied.

A PIPE consists of two main phases: setup and signing.

During setup, a standard Bitcoin key pair is generated, but the private key is never revealed. Instead, it is cryptographically locked behind a condition such as the validity of some off-chain computation. This locking is done using witness encryption, which allows the private key to be recovered only by someone who can produce valid evidence (a witness) that the condition holds.

During signing, a party that has such a witness tries to recover the private key. If the witness is valid, key recovery succeeds, and the party can produce an ordinary Schnorr signature. If the witness is invalid, recovering the key and thus producing a valid signature is computationally infeasible.

PIPE v2 Construction (at a glance)

• Setup (performed in a distributed manner)

  • Generate a standard Bitcoin key pair (sk, pk).
  • Fix a spending condition, expressed as a statement (e.g., a circuit C with public input x).
  • Encrypt the signing key sk under this statement using witness encryption.
  • Publish the public key pk and ciphertext.

  (No party learns sk during setup, assuming at least one setup party behaves honestly i.e., no full collusion.)

• Sign

  • Input: a message to be signed and a witness w.
  • If w is a valid witness for the statement, decrypt the ciphertext and obtain sk
    • Generate a Schnorr signature with sk.
  • If w is invalid, recovering sk and producing a valid signature is computationally infeasible.

• Verification (Bitcoin)

  • Bitcoin verifies the resulting Schnorr signature under pk as usual.
  • No statement, witness, or auxiliary data appears on-chain.

Research Status: At [[alloc] init], we are leading ongoing research on the cryptographic core of PIPE v2, with a particular focus on witness encryption. In addition to the abstract PIPE construction, we investigate how witness encryption can be instantiated in a way that is both analyzable and scalable. To this end, we introduce a witness encryption scheme based of Adaptive Arithmetic Determinant Programs (AADP) [3]. Alongside this, we systematically analyze prior and contemporary witness-encryption constructions.

Covenant Semantics: What PIPEs Enforce (and What They Don’t)

PIPEs v2 do not attempt to reproduce the full range of covenant semantics proposed for Bitcoin Script. Instead, they realize a specific and intentionally limited class of spending rules.

Binary NP Covenants

PIPE v2 enforces what we call binary covenants. At a high level, a PIPE enforces exactly one decision about a UTXO:

Is spending authorized or not?

Concretely, a PIPE controls whether the signing key for a UTXO is released. No additional structure is imposed on the spending transaction itself. PIPEs do not constrain the transaction format, outputs, or fee structure once authorization is granted. After the key is released, the signer holds an ordinary Bitcoin private key and can construct any valid transaction.

This model naturally captures a wide range of useful conditions whose outcome is binary. Examples include:

• “A valid zk-proof/ SNARK proof is provided.”

  For example, a proof that a condition holds (e.g., eligibility, membership, or correctness of a hidden computation).

• “A fraud proof exists.”

  Used to unlock funds only if incorrect behavior can be shown.

• “An exit condition is satisfied.”

  Such as proving inclusion in a commitment, knowledge of a secret, or eligibility to withdraw from an off-chain system.

• “A state transition is valid.”

  For instance, verifying that a rollup, bridge, or metaprotocol update follows the agreed rules.

In all cases, the covenant enforced by PIPEs answers a single question: is the condition satisfied or not? If yes, the funds become spendable; if no, they remain locked.

This tradeoff is intentional. PIPE v1 [1] already achieves non-interactivity and consensus compatibility, and serves as a proof of principle for cryptographic enforcement of spending conditions on Bitcoin. However, it relies on highly expressive cryptographic machinery (e.g., Functional Encryption, Indistinguishable Obfuscation) that is difficult to instantiate efficiently with current techniques. PIPE v2 [2] deliberately narrows the scope to one-time, binary authorization conditions. This simplification reduces cryptographic complexity while preserving the core guarantee: spending is possible if and only if a specified condition is satisfied.

Why Binary Authorization Is Often Enough

In practice, many useful Bitcoin applications require exactly this level of control.

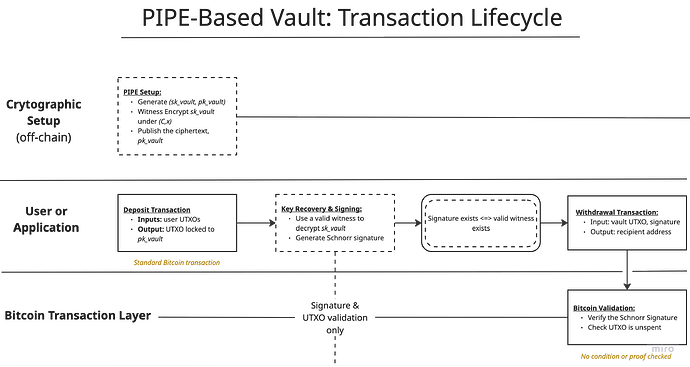

Vaults

Vaults are a canonical example. In a vault, the core requirement is not to micromanage how funds are spent, but to ensure that withdrawal is possible only if a specific condition is met. For example:

• a beneficiary proves eligibility,
• a recovery condition is satisfied,
• an external certificate or proof is provided.

Once the condition is met, the vault’s purpose is fulfilled. Imposing further constraints on the withdrawal transaction itself is often unnecessary. PIPEs naturally match this pattern: the vault unlocks if and only if the condition holds.

Exit and Escape Conditions

Many Bitcoin constructions include escape hatches or exit paths. These are not long-lived policies, but one-time conditions that allow funds to be recovered safely.

Examples include:

• exits from off-chain protocols,
• recovery paths from stalled systems,
• fraud or misbehavior proofs.

In these cases, the relevant question is binary: does a valid exit proof exist or not? Once it exists, the funds should be released. PIPEs enforce exactly this logic, without requiring interactive disputes or challenge periods.

Proof-Gated Releases

ZK proof or SNARK proof systems typically attest to a single fact:

• a state transition is valid,
• a computation was executed correctly,
• a committed value satisfies a predicate.

Such proofs already produce a boolean outcome: valid or invalid. PIPEs align directly with this model. They turn proof validity into spending authorization, without requiring Bitcoin Script to verify the proof itself.

Optimistic Protocol Finalization

Even in optimistic designs, many outcomes ultimately reduce to a binary decision. After the dispute window closes, either a fraud proof was presented or it was not. Once that decision is made, no further enforcement is needed.

PIPEs allow such finalization conditions to be enforced non-interactively: the existence of a valid proof directly unlocks funds, without on-chain disputes or timing assumptions.

Opcodes Examples

• OP_VAULT.According to the BIP (https://github.com/bitcoin/bips/pull/1421), OP_VAULT is valid only inside a Taproot leaf, and it enforces the following:

  • Trigger path. There must be an output (trigger output) whose index and amount are taken from the stack. That output must be locked with the same Taproot tree, except that the currently executing leaf is replaced by a new script taken from the stack. The opcode recomputes the modified Taproot commitment and checks that the actual transaction output matches it (both scriptPubKey and amount).
  • Optional recovery path. There may be a recovery output whose index and amount are also taken from the stack. That output must be locked with the original Taproot (unchanged tree) and have the specified amount (typically smaller).
  • From a low-level point of view, this means that OP_VAULT:
    • takes trigger/recovery output indices and amounts from the stack,
    • directly reads the corresponding outputs of the spending transaction,
    • recomputes the expected Taproot commitments,
    • and fails script evaluation if they do not match.

  This way OP_VAULT enforces a predicate over the spending transaction structure and it is not possible to emulate OP_VAULT directly with a single PIPE-based transaction. But! What we can do, though, is to emulate the OP_VAULT-alike core behavior by re-designing the vault to consist of many keys holding being released per-used

• OP_CSFS ( bips/bip-0348.md at eae7d9fc57a5f3a2b0c4853c127cb4d27377dbf3 · bitcoin/bips · GitHub ). Since CSFS is a signature verification over stack inputs i.e. a pure arithmetic function. This way this BIP is a perfect candidate for deprecation because of being possible to be completely replaces by PIPEs-induced functionality.

BitVM Enhancements

In this section we show how the PIPE primitive may be used to enhance the optimistic-verification flow of the BitVM protocol. We show that the cryptographic and on-chain components of classic BitVM such as garbled circuits (GC), label commitments, and zk-proofs of consistency map naturally to a single PIPE instance.

A BitVM computation is defined by a Boolean circuit for a predicate

f : \{0,1\}^n \rightarrow \{0,1\}.

Both BitVM and BitVM-PIPE involve the same set of actors, and the emulation works because their responsibilities align structurally.

• Operator. The operator claims knowledge of a witness w such that f(w) = 1. The operator provides all necessary information to make it possible to generate a compact fraud proof in case if f(w) = 0.
• Signers Committee (SC). Verifies the operator’s setup, publishes the information provided by the operator, and signs the on-chain transactions AssertTx and DisproveTx.
  • The AssertTx enforces the operator to start the protocol’s dispute period by publishing some additional information necessary for fraud proof construction.
  • The DisproveTx allows anyone to publish a fraud proof in case if the operator cheats and f(w) = 0.
• Challengers. Anyone able to detect operator’s misbehavior during the dispute window and publish the DisproveTx transaction containing a valid fraud proof.

In the BitVM case a fraud proof is equivalent to knowledge of the garbled circuit false-output label. To emulate this using PIPE, we reinterpret BitVM’s disprove condition as the PIPE underlying hard relation: R= f(w) = 0 ∧ h= Hash(w).

Here how the GC-based BitVM flow and its PIPE emulation compares:

BitVM using GC	BitVM using PIPE
Operator constructs a garbled circuit for f and sends to the SC: (1) garbled tables, (2) commitments to input labels and the false-output label, (3) a zk-proof of their consistency.	Operator knows a witness w with f(w) = 1. He computes h = Hash(w) and runs PIPE.Setup(1λ, h) = ((h, ct, π), pk) for a hard relation R. Operator sends the setup output to the SC.
SC verifies the zk-proof ensuring that the garbling table and label commitments are consistent. SC then publishes the garbling table and the transac- tion templates AssertTx and DisproveTx off-chain, and signs both transactions.	SC checks whether PIPE.OutVerify((h, ct, π), pk, h) = 1. If so, SC publishes AssertTx, DisproveTx, and ((h, ct, π), pk) off-chain.
Operator publishes AssertTx including openings of the committed input and false-output labels.	Operator publishes AssertTx including a witness wconsistent with h.
If f(w) = 0, a challenger can compute the false- output label from the public GC data and publish DisproveTx.	If f(w) = 0, a challenger can compute a valid PIPE signature σ = PIPE.WSign((h, ct, π), w, m). The signing algorithm succeeds because (h, w) ∈ R. The challenger publishes DisproveTx containing σ, and the script verifies the Schnorr signature under pk.
If no valid DisproveTx is posted during the dispute window, the optimistic path finalizes and the computation result is accepted.	If no valid DisproveTx is posted during the dispute window, the optimistic path finalizes and the computation result is accepted.

The emulation preserves the trust structure of GC-based BitVM protocols. We model the Signers Committee (SC) as a single logical party composed of n signers, and a permissionless set of challengers. Informally, the SC controls which spending conditions are put on-chain, while challengers enforce these conditions against a potentially dishonest operator.

The SC is implemented as an n-of-n multisig on Bitcoin: all n signers must cooperate to authorize AssertTx and DisproveTx. This has two consequences:

• Liveness depends on all n signers being online and willing to sign; a single unresponsive or malicious signer can halt progress.
• Soundness depends on the SC as a whole behaving honestly when the setup is produced. If at least one signer is honest and follows the protocol, an invalid setup (e.g., wrong GC, wrong PIPE instance, or wrong script template) will not be signed and therefore will never appear on-chain. or wrong script template) will not be signed and therefore will never appear on-chain.

Correctness with respect to the claimed computation holds as long as at least one challenger is honest. Challengers are permissionless and untrusted; their only role is to detect operator dishonesty during the dispute window. In BitVM, this means reconstructing the false-output label from the public GC; in BitVM-PIPE, it means opening the PIPE instance when f(w) = 0. If the operator cheats and the on-chain script is correct, a single honest challenger suffices to trigger the DisproveTx path.

Liveness in the optimistic case requires that all n SC members remain online and sign the required transactions; no liveness assumption is placed on challengers. Finality is reached once AssertTx confirms and no valid dispute is posted before the timeout.

Under these assumptions, BitVM-PIPE inherits the same safety–liveness profile as GC-based BitVM: the SC is a fully trusted n-of-n committee that fixes the on-chain spending conditions, while a single honest challenger suffices to enforce these conditions against a dishonest operator.

One structural difference between GC-based BitVM and BitVM-PIPE concerns the timing at which the operator’s witness is fixed. In BitVM, the garbling, label-commitments, and the zk-consistency proof can be generated without knowing the actual input w; the setup phase is witness-agnostic. In BitVM-PIPE, by contrast, the PIPE instance includes the value h = Hash(w), so the operator must know w at setup time. This distinction does not affect the optimistic-verification or dispute logic.

Beyond the structural correspondence, the on-chain footprint of BitVM-PIPE is smaller than that of GC-based BitVM.

The opening transaction AssertTx becomes smaller. In GC-based BitVM, the script must verify per-bit commitments to the input labels, which induces two hash computations for every bit of the operator’s input w together with the associated control opcodes. In BitVM-PIPE, the assertion transaction checks only the single hash value h = Hash(w). If w is an object that fits into a single Bitcoin stack item (for example, a Groth16 proof), then the AssertTx script becomes a very small constant-size program.

The dispute transaction DisproveTx is also compact: it consists of a single signature check.

Finally, the cost of both the setup phase and its verification depends only on the underlying PIPE primitive, and therefore solely on the chosen WE construction. As a result, the entire BitVM-PIPE construction inherits its asymptotic and concrete efficiency directly from the underlying PIPE instance.

Performance

A python script (approximately) modeling the Garuda-alike verifier expressed in AADP gives the following results (with v denoting variable count and g denoting gate count):

Substituting the ciphertext size formula v(2g+ 1)^2 |\mathbb{F}|, we get 338 TB size of the ciphertext. Due to the cubic scaling of the ciphertext size, even marginal improvements in the circuit size translate into significant improvements in the ciphertext size. Size of the ciphertext might possibly be decreased further - for example, by picking a better hash with a certification-friendly S-box or choosing a curve with smaller 2-adicity of F^d. Overall, we conclude that this approach to witness encryption, while very costly, is realistically implementable.

Computationally, the dominant cost arises from determinant computation. If properly parallelized (e.g., following the approach in [1308.1536] A Parallel Algorithm for Calculation of Large Determinants with High Accuracy for GPUs and MPI clusters ), the determinant can be computed within approximately one Bitcoin L1 block interval (~10 minutes) using up to 50 CPU machines, each equipped with 256 CPU cores and approximately 7 TB of storage. Memory requirements are comparatively modest and do not constitute a primary bottleneck.

At current cloud services pricing, renting such infrastructure amounts to approximately $100-200 per covenant execution, plus a negligible on-chain cost for signature verification. This makes the approach economically viable for near–real-time covenant emulation. Moreover, these execution costs can likely be further reduced through batching techniques under development.

Conclusion

Bitcoin PIPEs v2 present a cryptographic means of enforcing certain types of covenants on Bitcoin L1 without changing consensus rules and without additional trust mechanisms.

Cryptographic covenant enforcement occurs by releasing a signing key only when a witness to an NP statement is provided. This way a valid Schnorr signature can be produced only if the prescribed condition holds.

PIPEs v2 focused on witness encryption based on AADPs as a concrete and arithmetic-native construction. AADPs enable NP predicates particularly SNARK-verifiable statements to be expressed as explicit algebraic objects, allowing spending conditions to be enforced through determinant evaluation without any on-chain changes.

While AADP-based witness encryption is not presented as a final or optimized instantiation, it provides a fully specified and analyzable framework that makes the trade-offs of cryptographically enforced spending conditions explicit. By grounding PIPEs in a single, arithmetic-native witness encryption approach, PIPEs v2 clarifies how expressive off-chain logic can be enforced in practice using existing cryptographic tools.

Overall, PIPE v2 demonstrates that expressive, verifiable spending conditions can be achieved on Bitcoin purely through cryptography. Advancing this direction, by enhancing the WE scheme with alternative proof systems, iterating with performance optimizations, and applying PIPEs to vaults, bridges, and rollup architectures, offers a promising path toward richer functionality on Bitcoin.

References

[1] Mikhail Komarov, Bitcoin PIPEs, https://www.allocinit.xyz/uploads/placeholder-bitcoin.pdf

[2] Michel Abdalla, Brent Carmer, Muhammed El Gebali, Handan Kilinc-Alper, Mikhail Komarov, Yaroslav Rebenko, Lev Soukhanov, Erkan Tairi, Elena Tatuzova and Patrick Towa. Bitcoin PIPEs v2. Bitcoin PIPEs v2

[3] Lev Soukhanov, Yaroslav Rebenko, Muhammad El Gebali, and Mikhail Komarov. Implementable witness encryption from arithmetic affine determinant programs. Implementable Witness Encryption from Arithmetic Affine Determinant Programs

[AdamISZ]

Fascinating, thank you for publishing this.

I find myself very interested in one particular line of reasoning in this post:

@nemothenoone

This fully characterizes the available design space. Any spending rule that works without changing Bitcoin’s consensus rules must ultimately boil down to a single question:

Can a valid signature under this public key be produced or not?

There is no other hook available to enforce authorization.

The key insight behind PIPEs is to treat this constraint not as a limitation, but as the design surface.

On a first read through, I found this convincing: let’s consider how one can gate spending via any privileged knowledge status: we only have (a) signatures and (b) hashlocks, available in Script. Even the ECC equivalent of hashlocks is not available: pubkeys can only be matched against signatures, not private keys, in Script.

So the obvious problem with hashlocks is part of the sort of “Bitcoin 101” that we all looked at on the wiki back in the day - “locking” a utxo to the preimage of a sha2 hash is non-functional because once you publish the unlocking script anyone can read it and replace your destination address. Which seems to reinforce your point: a signature is the only way to authorize a particular payment.

But two counterpoints spring up:

• The “canonical” solution to the hashlock enforcement problem is, of course, seen in HTLC and similar: you can attach specific identities, additional to the hashlock: still a signature, but an additional “gate” that needn’t be related to the witness encryption. Also interesting in this context may be that, through a combination of taproot structures and plain old Script, you can make some kind of large OR condition (one of these pubkeys and the hashlock)
• Most interesting is that you are using witness encryption not to enforce authorization of specific transfers but to enable full control of the utxo. You call this “binary covenant” but I feel like the bitcoin research community has taken up the word “covenant” as specifically restricting the manner of spending - and that’s even setting aside @ajtowns imo very valid point that “covenant” is a terrible name for this. But meh, forget about names. Your system decrypting to the private key, not to a specific authorization, means that the distinction between the value of a hashlock, and the value of a signature, doesn’t apply, right? Is WE for hashlock preimages a possible alternative in the design space? (I have zero clue whether it would be easier, harder, or just not functional; I’m just reacting to the statement that the design space is only signatures).

[cmp_ancp]

Using a schematic with a counterparty operator, if a tx is required to have a 3-3 musig2 signature, being one key in possession of the operator, one in possession of the user and the third hidden behind WE, we can actually enforce a covenant-like tx format.

The user couldn’t form an abitrary tx, because it requires the operator signature. Even if the operator is malicious during the setup comittee, he couldn’t steal funds because of the user signature.

[AdamISZ]

@cmp_ancp

Using a schematic with a counterparty operator, if a tx is required to have a 3-3 musig2 signature, being one key in possession of the operator, one in possession of the user and the third hidden behind WE, we can actually enforce a covenant-like tx format.

The user couldn’t form an abitrary tx, because it requires the operator signature. Even if the operator is malicious during the setup comittee, he couldn’t steal funds because of the user signature.

Assuming this is answering my quibble about “is covenant a good term for this?” above, then: well but any multisig setup with a third party could do the same, couldn’t it? If the WE gates access to the private key itself, then in itself it doesn’t do any covenant-like behaviour. The restriction on the tx structure is purely from the operator in this setup, isn’t it?

[nemothenoone]

I agree btw, that to emulate a post-covenant (what you’re calling “to enforce the transaction structure”) cryptographically without a 3-of-3 multisig usage we need FE-based PIPEs (effectively it is what PIPEs v1 were about). But we haven’t got to being able to run PIPEs v1 practically yet (we only know how to do that with WE - v2 for now), so the only thing we can do without a 3-of-3 multisig is to do a PIPEs v2-based pre-covenant (or a binary-predicate covenant).

There is also a bit of a consideration that in fact, a PIPEs v2-based covenant can be of whatever complexity (let’s say, you can define any type of pre-condition for a transaction through zkVM/zkLLVM). So, maybe additional restriction can be enforced in there through a circuit design.

We’re looking (and welcoming any help!) into which other BIPs PIPEs (v1 or v2) can make obsolete btw. Would be interesting to clean up that wishlist a bit (by effectively bypassing the necessity for additional opcodes).

[cmp_ancp]

The trust balance is totally different.

Imagine we have a tx that need to have a certain format and could only be executed in a certain situation. In the simple 2-2 musig scenario, you need to trust the operator that they would give you the half signed tx when the condition is met, if the operator is mallicious and wants to censor you, he could simply don’t share the tx.

In the 3-3 musig + WE, the half signed tx is shared with the user beforehand, right after setup. The operator knows that the tx could only be spend if a certain condition is met, that the tx will have a certain format, and the user knows the operator could not possibly double spend even if they’re mallicious.

[AdamISZ]

OK, I understand better. I think? :

The WE locks the private key to some external condition (a fraud proof; a certificate of something that unlocks a vault, etc. - your various examples) being proved true. Then with the multisig component the spending transaction’s structure can be defined/controlled by a third party.

So the idea is that, by combining the two, you get a sort of “mix” of two desirable properties: the covenant-like behaviour is enforced by the 3rd party at any time (so as you say, early, at “setup” will be especially convenient), while that third party is not responsible for checking the spending condition or gate (such as the fraud proof being valid), that part is done automatically with WE.

So I guess I do see why you think the term ‘covenant’ makes sense here.

I guess the only unfortunate thing is that even if it is done in an early “setup” phase, this construction does require the user to be funding into a multisig in that setup phase. Depending on the use case that could be completely normal or not.

[cmp_ancp]

Well, if we ponder about it, all L2 applications of covenants require interactivity between parties (even though, with covenants in script, we have less interaction), and a musig is almost always present. Depending on situation, other spending paths could be set in tapleafs.

But about the trust assumptions stated earlier, many L2 protocols have steps where the parties only act and sign txs when they have proof that won’t be fooled. E.g., people will engage in atomic operations when the passive party already have a HTLC to theirself by the active party. In that way, the early reveal of the 3-3 musig by the operator may be the trigger to the protocol procedure.

Without this schematic, in the simple musig 2-2, the operator would need to share the half signed tx only when the condition is met, the user doesn’t have a 100% certain proof that won’t be fooled. Maybe we could think in an exit path without interaction at all.

[AdamISZ]

@nemothenoone

One structural difference between GC-based BitVM and BitVM-PIPE concerns the timing at which the operator’s witness is fixed. In BitVM, the garbling, label-commitments, and the zk-consistency proof can be generated without knowing the actual input w; the setup phase is witness-agnostic. In BitVM-PIPE, by contrast, the PIPE instance includes the value h = Hash(w), so the operator must know w at setup time. This distinction does not affect the optimistic-verification or dispute logic.

Can I ask for a bit of clarification on this? Isn’t part of the BitVM “idea” that they emulate covenants by pre-signing transactions and then deleting the keys, but here, because w is not known in advance, the signing committee has to cooperate in co-signing per operator update? Or did I misunderstand something?

[nemothenoone]

True, BitVM folks do covenant emulation via pre-signed txs which get unlocked upon a certain even happens within an interactive protocol.

With PIPEs, the primary difference is that there is no pre-defined operator set and the decryption condition is (1) non-interactive and (2) can be anything you can express in a circuit (i.e. anything you can prove with a zkVM or a circuit compiler, no pre-defined protocol logic in here).

This is basically why PIPEs are suitable for certain type of covenants in general, not only for bridging or a strictly-defined protocol workflow.

[ZmnSCPxj]

@nemothenoone

At current cloud services pricing, renting such infrastructure amounts to approximately $100-200 per covenant execution

My primary use-case for covenants is the improvement in multiparty offchain cryptocurrency systems, i.e. payment channels and their ilk. Having to pay 150,000 sats for a state transition for a high-frequency cryptocurrency transfer system is still too expensive.

However, if we consider things like SuperScalar and channel factories, perhaps it is more palatable? Have a more classic 2-party mechanism at the leaves that performs detailed payments, and have a more rarely-updated higher layer that may acceptably require 150,000 sats for a single rare batched liquidity management action.

I am quite curious about how no party gets to learn sk, so setup is multiparty? How expensive is setup? Does it require all parties to be online simultaneously? Simultaneously online setup is what covenant opcodes avoids (i.e. you generally can just give separate pubkeys for each interested party, solicited by some online actuary that does not require everyone to be online simultaneously, just that all parties have given a public key once), so any requirement for setup to have every interested party interactively online would not sufficiently replace covenant opcodes.

[ZmnSCPxj]

@ZmnSCPxj

Does it require all parties to be online simultaneously?

So to be clear about this (mostly for my own benefit, as I am a dilettante, with no true background in cryptographic math): for example, with MuSig2, you can have an external actuary who is NOT one of the parties interested, each of the actual interested parties can come online whenever, they do not have to be online simultaneously with each other, only with the actuary, and then hand over public keys. Then the actuary can calculate the address to be funded that is controlled by the MuSig2 combination, using the MuSig summation algorithm. The interested parties can be convinced that their own interests at least are encoded in that address, by the actuary providing the list of interested party pubkeys, then the individual interested party can double-check by checking that their own public key is included, and that the address is indeed the correct MuSig sum of the listed public keys.

In contrast, with FROST, there can be no actuary, each of the interested parties must be online simultaneously and send messages to each other, and each has to keep a share generated from the setup interaction. The setup must be simultaneously online.

With a covenant opcode like OP_CSFS, a third-party actuary can solicit the public keys of the interested parties, generate the SCRIPT embedding those public keys, and then use the MuSig combination of all interested party public keys to be used as the keyspend path key, and then generate a Taproot address with the SCRIPT embedded. The interested parties can double-check the address generated by the actuary and at least be assured that at least their own interest is encoded in the generated address.

This is relevant in e.g. LSP-client relationships, where a single LSP might want to use a single UTXO to back channels to many clients (i.e. SuperScalar technique). The clients may be mobile devices, where you have the chance of a fireball in hell that all of them will be online simultaneously, thus setup without simultaneous-onlineness is a requirement. The LSP takes on the role of actuary, and funds the UTXO, and the client comes online later, double-checks that ther interest is encoded in the confirmed onchain UTXO, then does exchanges of preimages for coins indirectly funded from the confirmed onchain UTXO.

I think the “arbitrary spending condition” goal is a mistake: any sufficiently complicated program is indistinguishable from a buggy program, and thus “arbitrary spending condition” is a laughable goal, once this insight is realized. The REAL goal is “trustless non-simultaneously-online setup”; we can already set up practical vaults using pre-signed transactions, but they require all interested parties to be simultaneously online during seteup.
